# 07-29 Instrument Cluster Telltales and Warnings Inspection

Check the condition of all warning lights on the instrument cluster.

  1. Turn the start key to “ON” and confirm all warning lamps are functional.

  2. See page 31 of the Operator manual – LionC Gen3.

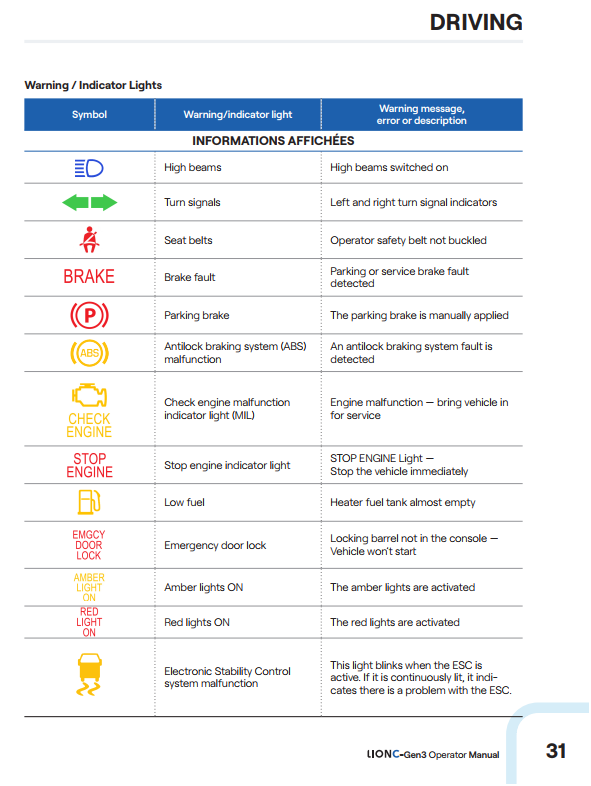

Figure 1 – LionC Gen3 warning lights.
Figure 1 – LionC Gen3 warning lights.

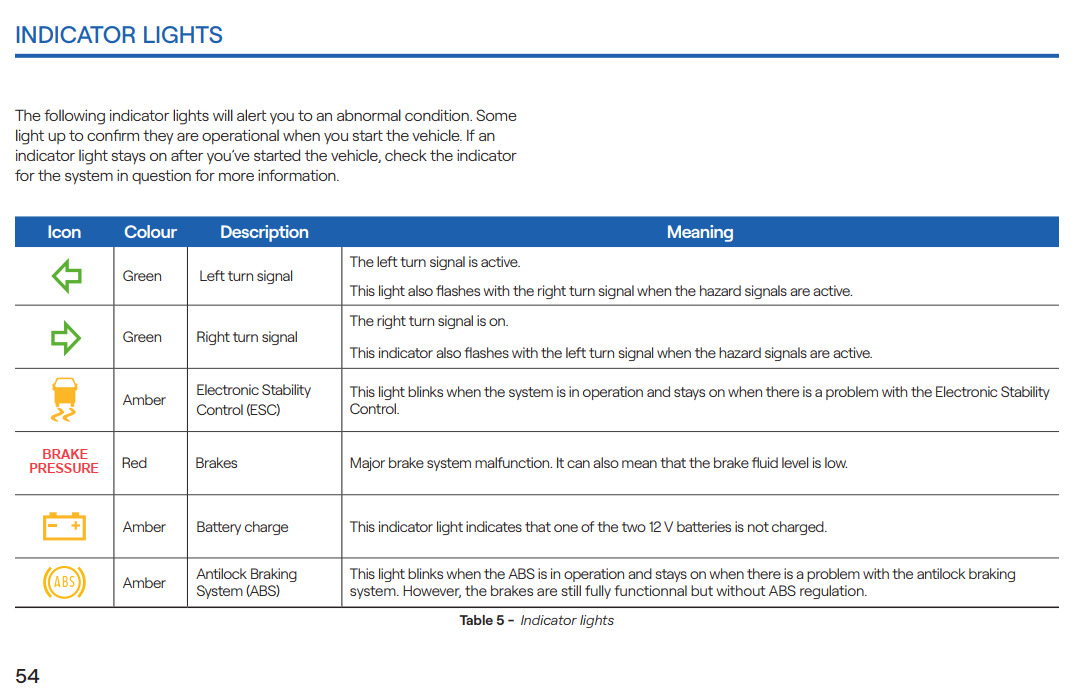

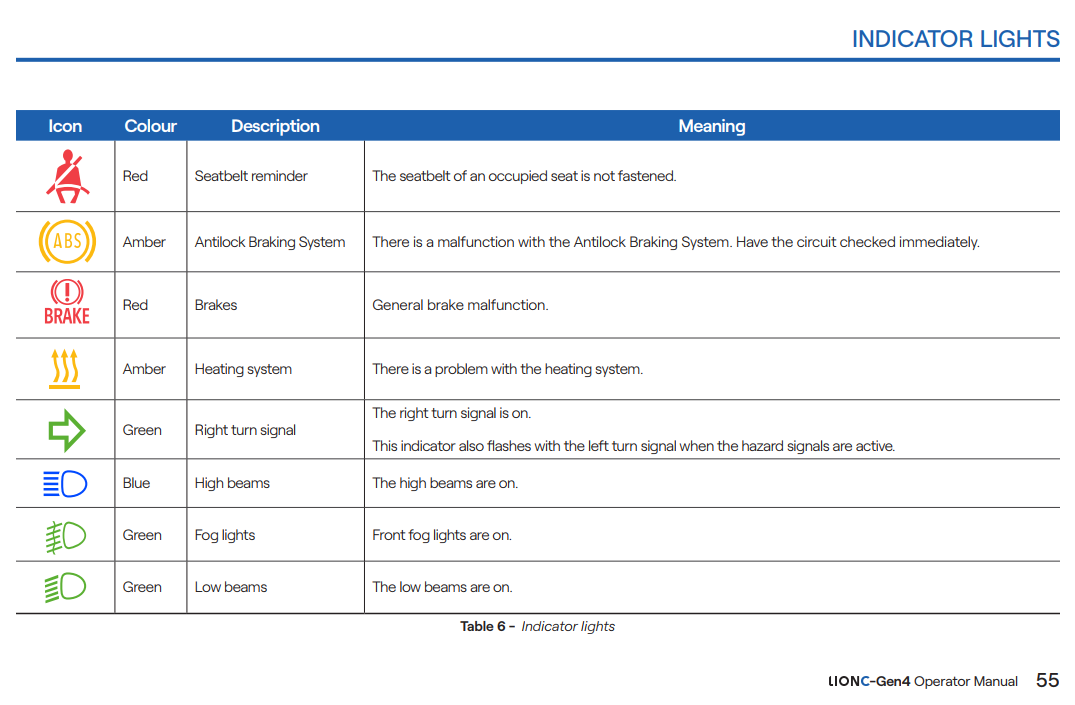

  1. See pages 54 to 56 of the Operator manual LionC Gen4.

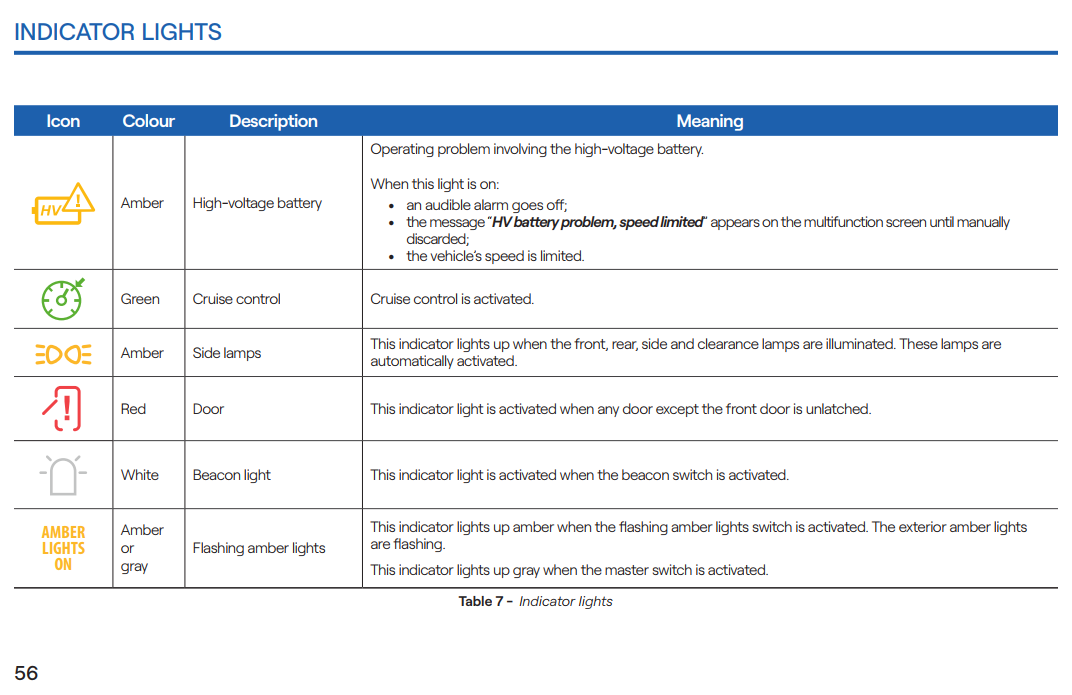

Figure 2 – LionC Gen4 indicator lights
Figure 2 – LionC Gen4 indicator lights
